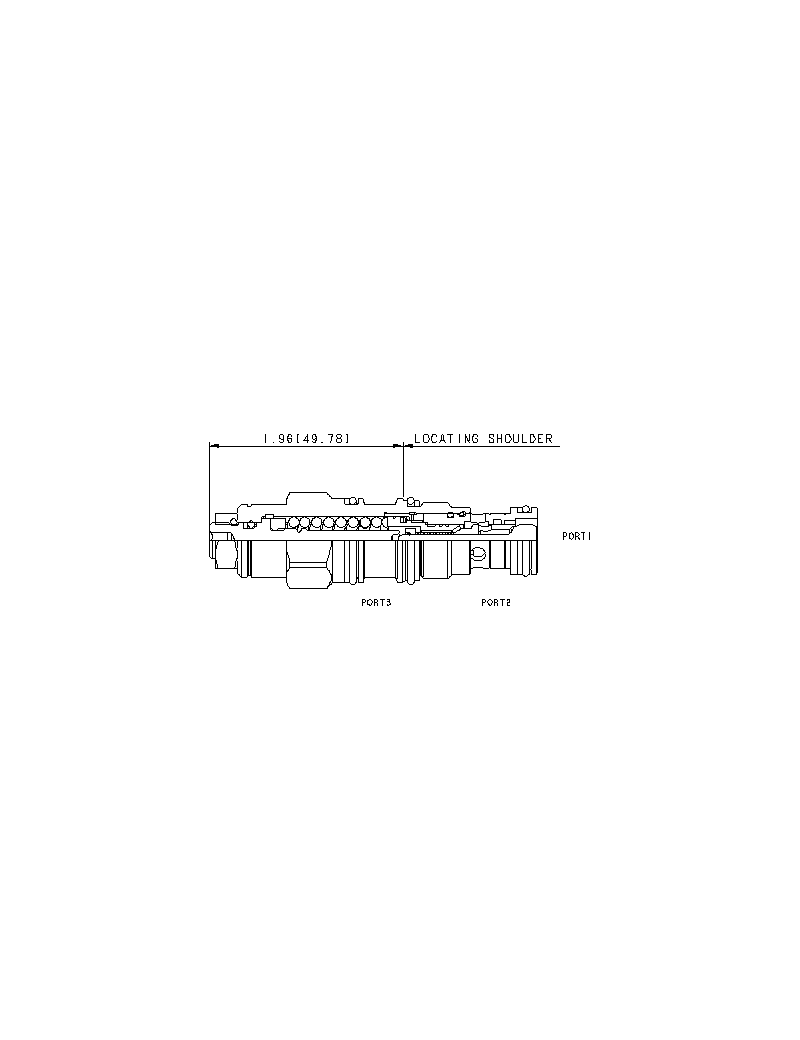

Restrictive counterbalance T-11A

€ 54,00
Internetprijs exclusief belasting

CBBHLJN 10:1 pilot ratio, restrictive counterbalance valve

Aantal
Laatste items in voorraad



Security policy



2-3 werkdagen als de producten op voorraad zijn



Afwijkingen dienen binnen 3 werkdagen gemeld te zijn

Cavity T-11A
Series 1
Capacity 5 gpm
Pilot Ratio 10:1
Maximum Recommended Load Pressure at Maximum Setting 3850 psi
Maximum Setting 5000 psi
Pilot Configuration Standard
Factory Pressure Settings Established at 2 in³/min.
Maximum Valve Leakage at Reseat 5 drops/min.
Adjustment - No. of CCW Turns from Min. to Max. Setting 3.75
Operating Characteristic Standard
Reseat >85% of setting
Valve Hex Size 7/8 in.
Valve Installation Torque 30 - 35 lbf ft
Adjustment Screw Internal Hex Size 5/32 in.
Locknut Hex Size 9/16 in.
Locknut Torque 80 - 90 lbf in.
Model Weight 0.35 lb.
CBBHLJN
