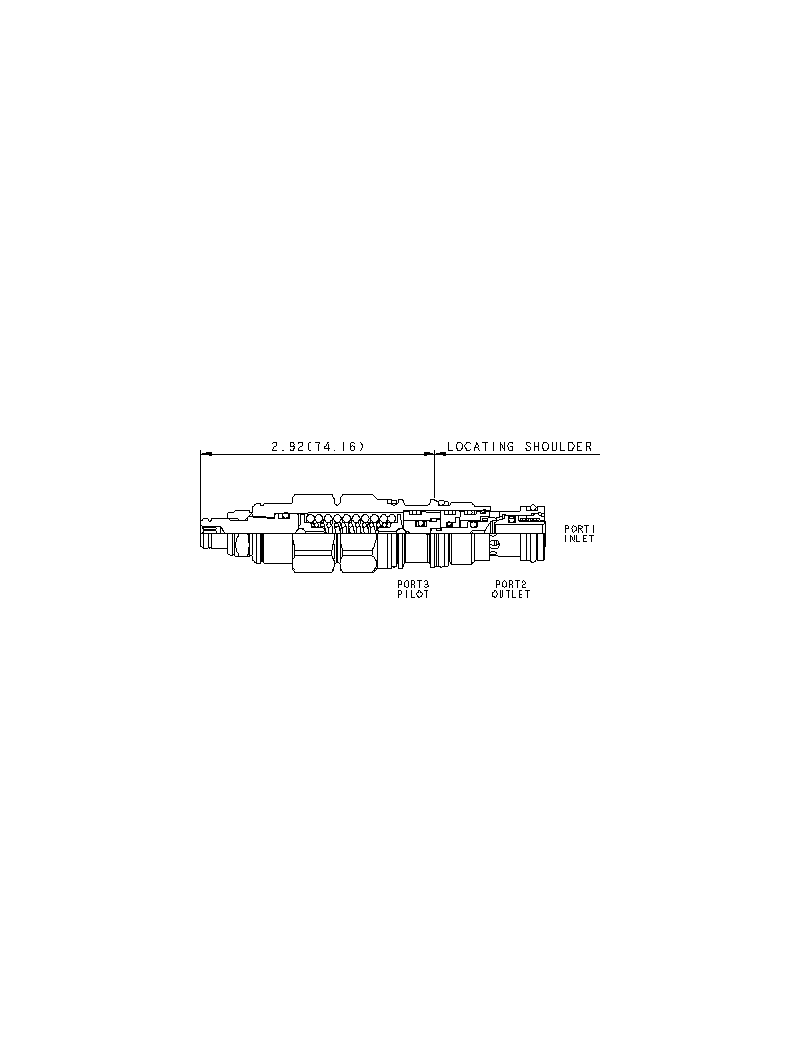

Counterbalance T-11A

€ 254,00
Internetprijs exclusief belasting

CACALHN 3:1 pilot ratio, vented counterbalance valve - atmospherically referenced 70-280bar

Aantal
Laatste items in voorraad



Security policy



2-3 werkdagen als de producten op voorraad zijn



Afwijkingen dienen binnen 3 werkdagen gemeld te zijn

Cavity T-11A
Series 1
Capacity 15 gpm
Pilot Ratio 3:1
Maximum Recommended Load Pressure at Maximum Setting 3075 psi
Maximum Setting 4000 psi
Factory Pressure Settings Established at 2 in³/min.
Maximum Valve Leakage at Reseat 5 drops/min.
Check Cracking Pressure 40 psi
Adjustment - No. of CCW Turns from Min. to Max. Setting 5
Operating Characteristic Standard
Reseat >85% of setting
Valve Hex Size 7/8 in.
Valve Installation Torque 30 - 35 lbf ft
Adjustment Screw Internal Hex Size 5/32 in.
Locknut Hex Size 9/16 in.
Locknut Torque 80 - 90 lbf in.
Model Weight 0.44 lb.
CACALHN
